Applicazioni: Acciai non legati, Acciai alto legati, Acciai inossidabili, Ghisa, Ghisa grigia, Ghisa malleabile, Alluminio, Leghe, Rame, Ottone, Bronzo, Materie plastiche
Su richiesta: Esecuzione speciale | diametri intermedi | DIN 6535 HB

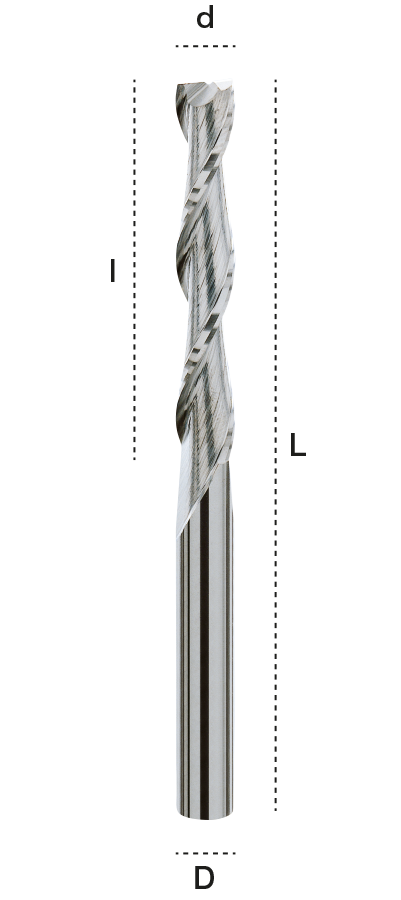

| codice | d h9 |
D h6 |
L | l ap |
|
|---|---|---|---|---|---|
| H.M. | |||||
| details | TM 3.2XL-0300 | 3.00 | 3.00 | 70 | 30 |
|
|
|||||
| details | TM 3.2XL-0400 | 4.00 | 4.00 | 75 | 40 |
|
|
|||||
| details | TM 3.2XL-0500 | 5.00 | 5.00 | 80 | 40 |
|
|
|||||
| details | TM 3.2XL-0600 | 6.00 | 6.00 | 80 | 45 |
|
|
|||||
| details | TM 3.2XL-0800 | 8.00 | 8.00 | 100 | 50 |
|
|
|||||
| details | TM 3.2XL-1000 | 10.00 | 10.00 | 100 | 50 |
|
|
|||||
| details | TM 3.2XL-1200 | 12.00 | 12.00 | 150 | 70 |
|
|
|||||
| details | TM 3.2XL-1400 | 14.00 | 14.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-1600 | 16.00 | 16.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-1800 | 18.00 | 18.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-2000 | 20.00 | 20.00 | 150 | 75 |
|
|
|||||
| AlTiSiN | |||||
| details | TM 3.2XL-0300L | 3.00 | 3.00 | 70 | 30 |
|
|
|||||
| details | TM 3.2XL-0400L | 4.00 | 4.00 | 75 | 40 |
|
|
|||||
| details | TM 3.2XL-0500L | 5.00 | 5.00 | 80 | 40 |
|
|
|||||
| details | TM 3.2XL-0600L | 6.00 | 6.00 | 80 | 45 |
|
|
|||||
| details | TM 3.2XL-0800L | 8.00 | 8.00 | 100 | 50 |
|
|
|||||
| details | TM 3.2XL-1000L | 10.00 | 10.00 | 100 | 50 |
|
|
|||||
| details | TM 3.2XL-1200L | 12.00 | 12.00 | 150 | 70 |
|
|
|||||
| details | TM 3.2XL-1400L | 14.00 | 14.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-1600L | 16.00 | 16.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-1800L | 18.00 | 18.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-2000L | 20.00 | 20.00 | 150 | 75 |
|
|
|||||
| TiCN-B | |||||
| details | TM 3.2XL-0300C | 3.00 | 3.00 | 70 | 30 |
|
|
|||||
| details | TM 3.2XL-0400C | 4.00 | 4.00 | 75 | 40 |
|
|
|||||
| details | TM 3.2XL-0500C | 5.00 | 5.00 | 80 | 40 |
|
|
|||||
| details | TM 3.2XL-0600C | 6.00 | 6.00 | 80 | 45 |
|
|
|||||
| details | TM 3.2XL-0800C | 8.00 | 8.00 | 100 | 50 |
|
|
|||||
| details | TM 3.2XL-1000C | 10.00 | 10.00 | 100 | 50 |
|
|
|||||
| details | TM 3.2XL-1200C | 12.00 | 12.00 | 150 | 70 |
|
|
|||||
| details | TM 3.2XL-1400C | 14.00 | 14.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-1600C | 16.00 | 16.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-1800C | 18.00 | 18.00 | 150 | 75 |
|
|
|||||
| details | TM 3.2XL-2000C | 20.00 | 20.00 | 150 | 75 |
|
|
|||||
