Applicazioni: Acciai non legati, Acciai alto legati, Acciai inossidabili, Ghisa, Ghisa grigia, Ghisa malleabile, Alluminio, Leghe, Rame, Ottone, Bronzo, Materie plastiche
Su richiesta: Esecuzione speciale | diametri intermedi | DIN 6535 HB

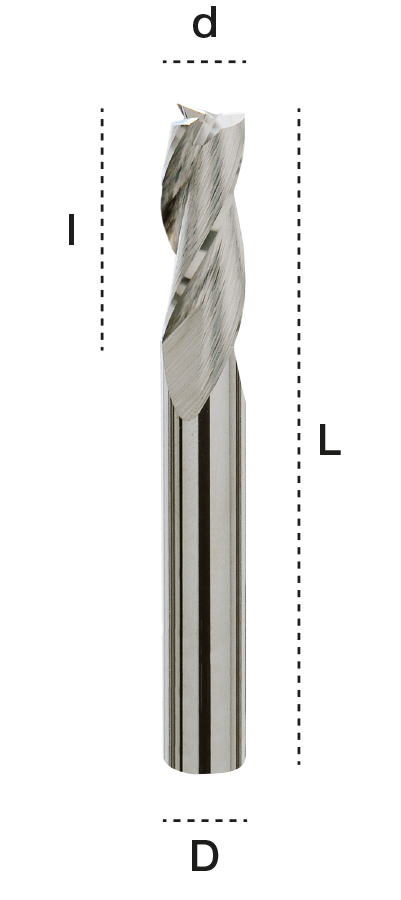

| codice | d h9 |
D h6 |
L | l ap |
|
|---|---|---|---|---|---|
| H.M. | |||||
| details | TM 3.3-0200 | 2.00 | 2.00 | 38 | 8 |
|
|
|||||
| details | TM 3.3-0250 | 2.50 | 2.50 | 38 | 8 |
|
|
|||||
| details | TM 3.3-0300 | 3.00 | 3.00 | 38 | 12 |
|
|
|||||
| details | TM 3.3-0350 | 3.50 | 3.50 | 40 | 12 |
|
|
|||||
| details | TM 3.3-0400 | 4.00 | 4.00 | 40 | 12 |
|
|
|||||
| details | TM 3.3-0450 | 4.50 | 4.50 | 50 | 14 |
|
|
|||||
| details | TM 3.3-0500 | 5.00 | 5.00 | 50 | 14 |
|
|
|||||
| details | TM 3.3-0550 | 5.50 | 5.50 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0600 | 6.00 | 6.00 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0650 | 6.50 | 6.50 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0700 | 7.00 | 7.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0750 | 7.50 | 7.50 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0800 | 8.00 | 8.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0850 | 8.50 | 8.50 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0900 | 9.00 | 9.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0950 | 9.50 | 9.50 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1000 | 10.00 | 10.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1100 | 11.00 | 11.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1200 | 12.00 | 12.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1300 | 13.00 | 13.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1400 | 14.00 | 14.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1500 | 15.00 | 15.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1600 | 16.00 | 16.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1800 | 18.00 | 18.00 | 100 | 32 |
|
|
|||||
| details | TM 3.3-2000 | 20.00 | 20.00 | 100 | 32 |
|
|
|||||
| AlTiSiN | |||||
| details | TM 3.3-0200L | 2.00 | 2.00 | 38 | 8 |
|
|
|||||
| details | TM 3.3-0250L | 2.50 | 2.50 | 38 | 8 |
|
|
|||||
| details | TM 3.3-0300L | 3.00 | 3.00 | 38 | 12 |
|
|
|||||
| details | TM 3.3-0350L | 3.50 | 3.50 | 40 | 12 |
|
|
|||||
| details | TM 3.3-0400L | 4.00 | 4.00 | 40 | 12 |
|
|
|||||
| details | TM 3.3-0450L | 4.50 | 4.50 | 50 | 14 |
|
|
|||||
| details | TM 3.3-0500L | 5.00 | 5.00 | 50 | 14 |
|
|
|||||
| details | TM 3.3-0550L | 5.50 | 5.50 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0600L | 6.00 | 6.00 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0650L | 6.50 | 6.50 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0700L | 7.00 | 7.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0750L | 7.50 | 7.50 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0800L | 8.00 | 8.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0850L | 8.50 | 8.50 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0900L | 9.00 | 9.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0950L | 9.50 | 9.50 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1000L | 10.00 | 10.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1100L | 11.00 | 11.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1200L | 12.00 | 12.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1300L | 13.00 | 13.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1400L | 14.00 | 14.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1500L | 15.00 | 15.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1600L | 16.00 | 16.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1800L | 18.00 | 18.00 | 100 | 32 |
|
|
|||||
| details | TM 3.3-2000L | 20.00 | 20.00 | 100 | 32 |
|
|
|||||
| TiCN-B | |||||
| details | TM 3.3-0200C | 2.00 | 2.00 | 38 | 8 |
|
|
|||||
| details | TM 3.3-0250C | 2.50 | 2.50 | 38 | 8 |
|
|
|||||
| details | TM 3.3-0300C | 3.00 | 3.00 | 38 | 12 |
|
|
|||||
| details | TM 3.3-0350C | 3.50 | 3.50 | 40 | 12 |
|
|
|||||
| details | TM 3.3-0400C | 4.00 | 4.00 | 40 | 12 |
|
|
|||||
| details | TM 3.3-0450C | 4.50 | 4.50 | 50 | 14 |
|
|
|||||
| details | TM 3.3-0500C | 5.00 | 5.00 | 50 | 14 |
|
|
|||||
| details | TM 3.3-0550C | 5.50 | 5.50 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0600C | 6.00 | 6.00 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0650C | 6.50 | 6.50 | 50 | 16 |
|
|
|||||
| details | TM 3.3-0700C | 7.00 | 7.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0750C | 7.50 | 7.50 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0800C | 8.00 | 8.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0850C | 8.50 | 8.50 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0900C | 9.00 | 9.00 | 60 | 20 |
|
|
|||||
| details | TM 3.3-0950C | 9.50 | 9.50 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1000C | 10.00 | 10.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1100C | 11.00 | 11.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1200C | 12.00 | 12.00 | 70 | 22 |
|
|
|||||
| details | TM 3.3-1300C | 13.00 | 13.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1400C | 14.00 | 14.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1500C | 15.00 | 15.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1600C | 16.00 | 16.00 | 75 | 25 |
|
|
|||||
| details | TM 3.3-1800C | 18.00 | 18.00 | 100 | 32 |
|
|
|||||
| details | TM 3.3-2000C | 20.00 | 20.00 | 100 | 32 |
|
|
|||||
