Application groups: Cast iron, Grey iron, Malleable iron
On request: Coating | out of range | other sizes | DIN 6535 HEK

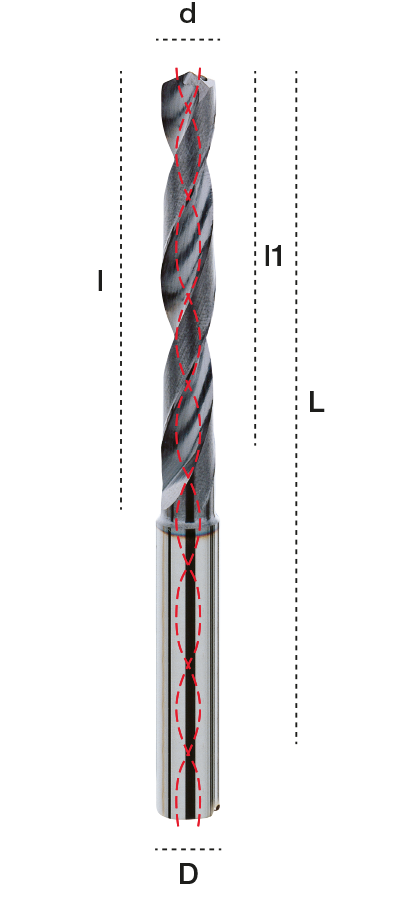

| article number | d m7 |
D h6 |
L | l | |
|---|---|---|---|---|---|
| AlTiSiN | |||||
| details | THP2.920GG-0600 | 6.00 | 6.00 | 82 | 44 |
|
|
|||||
| details | THP2.920GG-0650 | 6.50 | 8.00 | 91 | 53 |
|
|
|||||
| details | THP2.920GG-0680 | 6.80 | 8.00 | 91 | 53 |
|
|
|||||
| details | THP2.920GG-0700 | 7.00 | 8.00 | 91 | 53 |
|
|
|||||
| details | THP2.920GG-0750 | 7.50 | 8.00 | 91 | 53 |
|
|
|||||
| details | THP2.920GG-0780 | 7.80 | 8.00 | 91 | 53 |
|
|
|||||
| details | THP2.920GG-0800 | 8.00 | 8.00 | 91 | 53 |
|
|
|||||
| details | THP2.920GG-0850 | 8.50 | 10.00 | 103 | 61 |
|
|
|||||
| details | THP2.920GG-0880 | 8.80 | 10.00 | 103 | 61 |
|
|
|||||
| details | THP2.920GG-0900 | 9.00 | 10.00 | 103 | 61 |
|
|
|||||
| details | THP2.920GG-0950 | 9.50 | 10.00 | 103 | 61 |
|
|
|||||
| details | THP2.920GG-0980 | 9.80 | 10.00 | 103 | 61 |
|
|
|||||
| details | THP2.920GG-1000 | 10.00 | 10.00 | 103 | 61 |
|
|
|||||
| details | THP2.920GG-1020 | 10.20 | 12.00 | 118 | 71 |
|
|
|||||
| details | THP2.920GG-1050 | 10.50 | 12.00 | 118 | 71 |
|
|
|||||
| details | THP2.920GG-1080 | 10.80 | 12.00 | 118 | 71 |
|
|
|||||
| details | THP2.920GG-1100 | 11.00 | 12.00 | 118 | 71 |
|
|
|||||
| details | THP2.920GG-1150 | 11.50 | 12.00 | 118 | 71 |
|
|
|||||
| details | THP2.920GG-1180 | 11.80 | 12.00 | 118 | 71 |
|
|
|||||
| details | THP2.920GG-1200 | 12.00 | 12.00 | 118 | 71 |
|
|
|||||
