Application groups: Non-alloyed steels, Alloyed steels, Stainless steels, Cast iron, Grey iron, Malleable iron, Cr-Ni alloys, Aluminium, Alloys, Copper, Brass, Bronze
On request: Coating | out of range | other sizes | DIN 6535 HEK

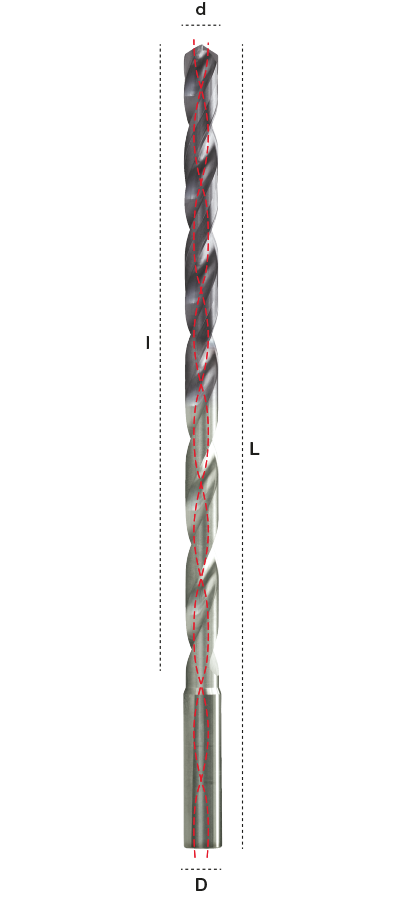

| article number | d h7 |
D h6 |
L | l | |
|---|---|---|---|---|---|
| AlTiSiN | |||||
| details | THP 2.915-0400 | 4.00 | 6.00 | 108 | 68 |
|
|
|||||
| details | THP 2.915-0450 | 4.50 | 6.00 | 115 | 78 |
|
|
|||||
| details | THP 2.915-0500 | 5.00 | 6.00 | 125 | 84 |
|
|
|||||
| details | THP 2.915-0550 | 5.50 | 6.00 | 130 | 92 |
|
|
|||||
| details | THP 2.915-0600 | 6.00 | 6.00 | 140 | 100 |
|
|
|||||
| details | THP 2.915-0650 | 6.50 | 8.00 | 145 | 108 |
|
|
|||||
| details | THP 2.915-0700 | 7.00 | 8.00 | 170 | 130 |
|
|
|||||
| details | THP 2.915-0750 | 7.50 | 8.00 | 170 | 130 |
|
|
|||||
| details | THP 2.915-0800 | 8.00 | 8.00 | 170 | 130 |
|
|
|||||
| details | THP 2.915-0850 | 8.50 | 10.00 | 208 | 163 |
|
|
|||||
| details | THP 2.915-0900 | 9.00 | 10.00 | 208 | 163 |
|
|
|||||
| details | THP 2.915-0950 | 9.50 | 10.00 | 208 | 163 |
|
|
|||||
| details | THP 2.915-1000 | 10.00 | 10.00 | 208 | 163 |
|
|
|||||
| details | THP 2.915-1050 | 10.50 | 12.00 | 245 | 195 |
|
|
|||||
| details | THP 2.915-1100 | 11.00 | 12.00 | 245 | 195 |
|
|
|||||
| details | THP 2.915-1150 | 11.50 | 12.00 | 245 | 195 |
|
|
|||||
| details | THP 2.915-1200 | 12.00 | 12.00 | 245 | 195 |
|
|
|||||
