THP 2.950 ST

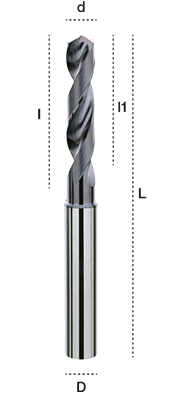

  • Solid carbide high performance twist drill
  • Shank DIN 6535 HA, Max. drill depth up to 3-4 x d

    Solid carbide grades: 10% Co Micro grain

    Flute geometry: special point flute execution

    Application groups: steel, cast steel, heatresisting steel, non-ferrous metals, aluminium, Cr-Ni-alloys, titanium alloys

    On request: Out of range, other sizes. Regrinding tools. Shank with side flat DIN 6535 HE.

Omicron AltiSin Top 5xd Gocce olio 140° Tolleranza 140° ±1° Profilo THP 2.900 30° Micro grain DIN 6537

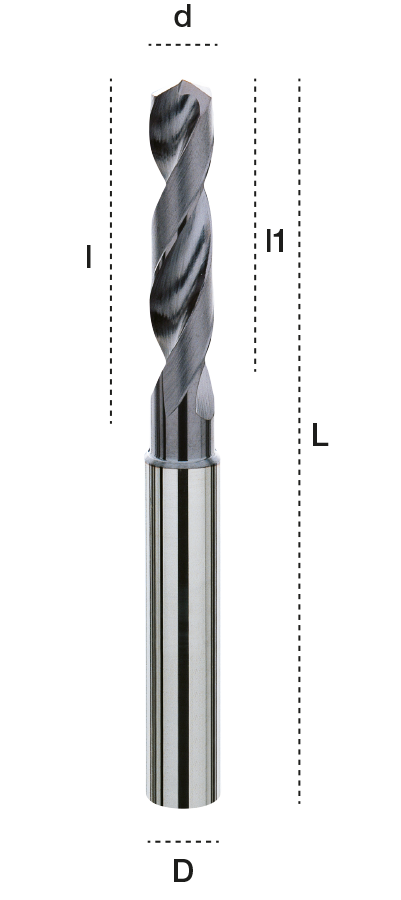

article number d
mm
m7
D
mm
h6
L
mm
l
mm
details THP2.950ST-0400 4.00 6.00 74 36
Price:lock
Availability:lock
l1 - mm: 29
details THP2.950ST-0420 4.20 6.00 74 36
Price:lock
Availability:lock
l1 - mm: 29
details THP2.950ST-0450 4.50 6.00 74 36
Price:lock
Availability:lock
l1 - mm: 29
details THP2.950ST-0500 5.00 6.00 82 44
Price:lock
Availability:lock
l1 - mm: 35
details THP2.950ST-0510 5.10 6.00 82 44
Price:lock
Availability:lock
l1 - mm: 35
details THP2.950ST-0550 5.50 6.00 82 44
Price:lock
Availability:lock
l1 - mm: 35
details THP2.950ST-0600 6.00 6.00 82 44
Price:lock
Availability:lock
l1 - mm: 35
details THP2.950ST-0650 6.50 8.00 91 53
Price:lock
Availability:lock
l1 - mm: 43
details THP2.950ST-0680 6.80 8.00 91 53
Price:lock
Availability:lock
l1 - mm: 43
details THP2.950ST-0700 7.00 8.00 91 53
Price:lock
Availability:lock
l1 - mm: 43
details THP2.950ST-0750 7.50 8.00 91 53
Price:lock
Availability:lock
l1 - mm: 43
details THP2.950ST-0800 8.00 8.00 91 53
Price:lock
Availability:lock
l1 - mm: 43
details THP2.950ST-0850 8.50 10.00 103 61
Price:lock
Availability:lock
l1 - mm: 49
details THP2.950ST-0880 8.80 10.00 103 61
Price:lock
Availability:lock
l1 - mm: 49
details THP2.950ST-0900 9.00 10.00 103 61
Price:lock
Availability:lock
l1 - mm: 49
details THP2.950ST-0950 9.50 10.00 103 61
Price:lock
Availability:lock
l1 - mm: 49
details THP2.950ST-1000 10.00 10.00 103 61
Price:lock
Availability:lock
l1 - mm: 49
details THP2.950ST-1050 10.50 12.00 118 71
Price:lock
Availability:lock
l1 - mm: 56
details THP2.950ST-1100 11.00 12.00 118 71
Price:lock
Availability:lock
l1 - mm: 56
details THP2.950ST-1200 12.00 12.00 118 71
Price:lock
Availability:lock
l1 - mm: 56
