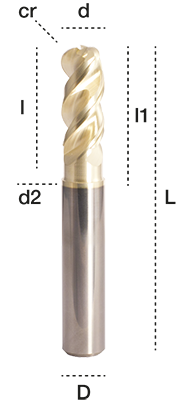

TM 3C-HPC Alu
  • HPC-Torodial end mills Alu suitable for milling in aluminium and aluminium in aircraft construction
  • Solid carbide grades: Micro grain 0,2 ± 0,5µ

    Application groups: aluminium, die-cast aluminium, aircraft aluminium, non ferrous metals, plastics

    3 torodial cutting edges. Irregular division. Special shank execution. h5 super finished.

    On request: DIN 6535 HB.

Micro grain Omicron ZrN HPC 43° 45° 47° HPC Alu TM HPC azione Raggio

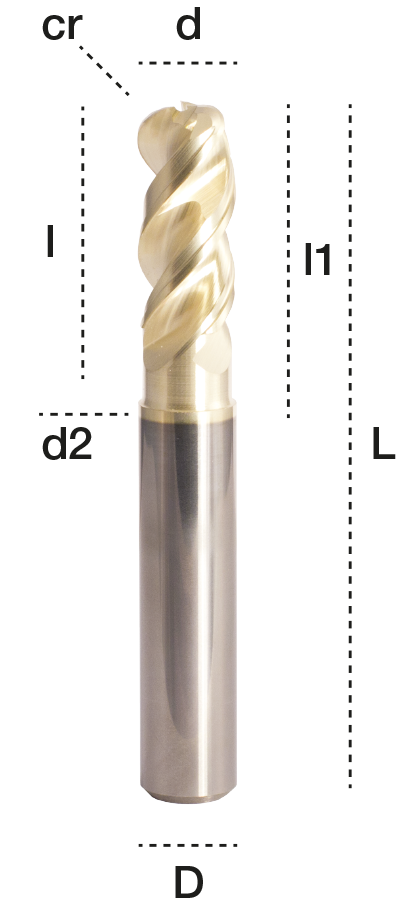

article number d
mm
h10
D
mm
h5
l
mm
L
mm
details TM 3C-HPC-060.5 6.00 6.00 13 57
Price:lock
Availability:lock
cr ± 0,01: 0,5
d2 - mm: 5,5
l1 - mm: 21
Z: 3
details TM 3C-HPC-061.0 6.00 6.00 13 57
Price:lock
Availability:lock
cr ± 0,01: 1
d2 - mm: 5,5
l1 - mm: 21
Z: 3
details TM 3C-HPC-061.5 6.00 6.00 13 57
Price:lock
Availability:lock
cr ± 0,01: 1,5
d2 - mm: 5,5
l1 - mm: 21
Z: 3
details TM 3C-HPC-081.5 8.00 8.00 19 63
Price:lock
Availability:lock
cr ± 0,01: 1,5
d2 - mm: 7,4
l1 - mm: 26
Z: 3
details TM 3C-HPC-082.0 8.00 8.00 19 63
Price:lock
Availability:lock
cr ± 0,01: 2
d2 - mm: 7,4
l1 - mm: 26
Z: 3
details TM 3C-HPC-082.5 8.00 8.00 19 63
Price:lock
Availability:lock
cr ± 0,01: 2,5
d2 - mm: 7,4
l1 - mm: 26
Z: 3
details TM 3C-HPC-083.0 8.00 8.00 19 63
Price:lock
Availability:lock
cr ± 0,01: 3
d2 - mm: 7,4
l1 - mm: 26
Z: 3
details TM 3C-HPC-102.0 10.00 10.00 22 70
Price:lock
Availability:lock
cr ± 0,01: 2
d2 - mm: 9,2
l1 - mm: 30
Z: 3
details TM 3C-HPC-102.5 10.00 10.00 22 72
Price:lock
Availability:lock
cr ± 0,01: 2,5
d2 - mm: 9,2
l1 - mm: 30
Z: 3
details TM 3C-HPC-103.0 10.00 10.00 22 72
Price:lock
Availability:lock
cr ± 0,01: 3
d2 - mm: 9,2
l1 - mm: 30
Z: 3
details TM 3C-HPC-104.0 10.00 10.00 22 72
Price:lock
Availability:lock
cr ± 0,01: 4
d2 - mm: 9,2
l1 - mm: 30
Z: 3
details TM 3C-HPC-122.0 12.00 12.00 26 83
Price:lock
Availability:lock
cr ± 0,01: 2
d2 - mm: 11
l1 - mm: 37
Z: 3
details TM 3C-HPC-122.5 12.00 12.00 26 83
Price:lock
Availability:lock
cr ± 0,01: 2,5
d2 - mm: 11
l1 - mm: 37
Z: 3
details TM 3C-HPC-123.0 12.00 12.00 26 83
Price:lock
Availability:lock
cr ± 0,01: 3
d2 - mm: 11
l1 - mm: 37
Z: 3
details TM 3C-HPC-124.0 12.00 12.00 26 83
Price:lock
Availability:lock
cr ± 0,01: 4
d2 - mm: 11
l1 - mm: 37
Z: 3
details TM 3C-HPC-162.0 16.00 16.00 32 92
Price:lock
Availability:lock
cr ± 0,01: 2
d2 - mm: 15
l1 - mm: 42
Z: 3
details TM 3C-HPC-162.5 16.00 16.00 32 92
Price:lock
Availability:lock
cr ± 0,01: 2,5
d2 - mm: 15
l1 - mm: 42
Z: 3
details TM 3C-HPC-163.0 16.00 16.00 32 92
Price:lock
Availability:lock
cr ± 0,01: 3
d2 - mm: 15
l1 - mm: 42
Z: 3
details TM 3C-HPC-164.0 16.00 16.00 32 92
Price:lock
Availability:lock
cr ± 0,01: 4
d2 - mm: 15
l1 - mm: 42
Z: 3
details TM 3C-HPC-165.0 16.00 16.00 32 92
Price:lock
Availability:lock
cr ± 0,01: 5
d2 - mm: 15
l1 - mm: 42
Z: 3
details TM 3C-HPC-202.5 20.00 20.00 38 104
Price:lock
Availability:lock
cr ± 0,01: 2,5
d2 - mm: 19
l1 - mm: 50
Z: 3
details TM 3C-HPC-203.0 20.00 20.00 38 104
Price:lock
Availability:lock
cr ± 0,01: 3
d2 - mm: 19
l1 - mm: 50
Z: 3
details TM 3C-HPC-204.0 20.00 20.00 38 104
Price:lock
Availability:lock
cr ± 0,01: 4
d2 - mm: 19
l1 - mm: 50
Z: 3
details TM 3C-HPC-205.0 20.00 20.00 38 104
Price:lock
Availability:lock
cr ± 0,01: 5
d2 - mm: 19
l1 - mm: 50
Z: 3
