End mills keyboard_arrow_right HPC Alu end mills

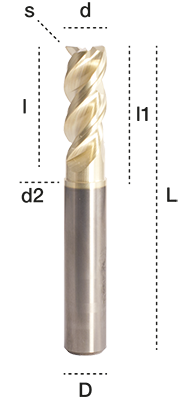

TM 3T-HPC Alu
  • HPC Alu ZrN, High Performance Cutting end milling cutters suitable for cutting Aluminium
  • Solid carbide grades: K10 micro grain < 0,5μ

    Application groups: aluminium, die-cast aluminium, aircraft aluminium, non ferrous metals, plastics.

    Z=3 with unequal division. Dynamic flute geometry. Special shank execution h5.

    On request: DIN 6535 HB.

Micro grain Omicron ZrN HPC 43° 45° 47° HPC Alu TM HPC azione Smusso

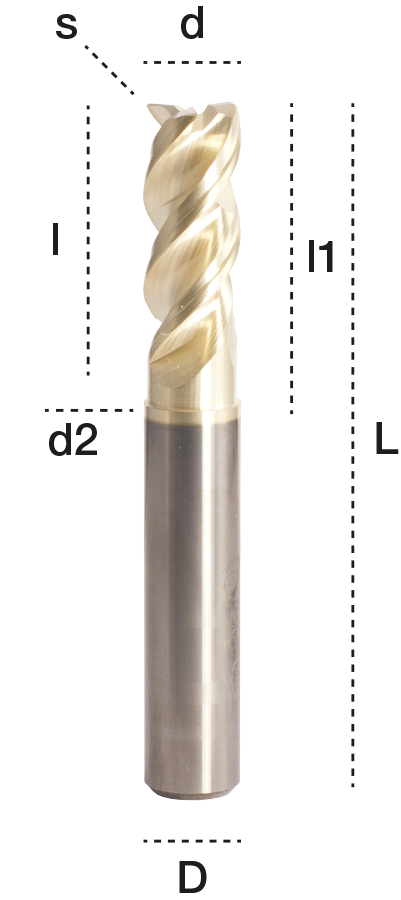

article number d
mm
h10
D
mm
h5
l
mm
L
mm
details TM 3T-HPC-0600 6.00 6.00 13 57
Price:lock
Availability:lock
s - mm: 0,2
d2 - mm: 5,5
l1 - mm: 21
Z: 3
details TM 3T-HPC-0800 8.00 8.00 19 63
Price:lock
Availability:lock
s - mm: 0,2
d2 - mm: 7,4
l1 - mm: 26
Z: 3
details TM 3T-HPC-1000 10.00 10.00 22 72
Price:lock
Availability:lock
s - mm: 0,25
d2 - mm: 9,2
l1 - mm: 30
Z: 3
details TM 3T-HPC-1200 12.00 12.00 26 83
Price:lock
Availability:lock
s - mm: 0,3
d2 - mm: 11
l1 - mm: 37
Z: 3
details TM 3T-HPC-1600 16.00 16.00 32 92
Price:lock
Availability:lock
s - mm: 0,4
d2 - mm: 15
l1 - mm: 42
Z: 3
details TM 3T-HPC-2000 20.00 20.00 38 104
Price:lock
Availability:lock
s - mm: 0,45
d2 - mm: 19
l1 - mm: 50
Z: 3
