Application groups: Aluminium, Alloys, Copper, Brass, Bronze, Plastic materials
On request: Other sizes

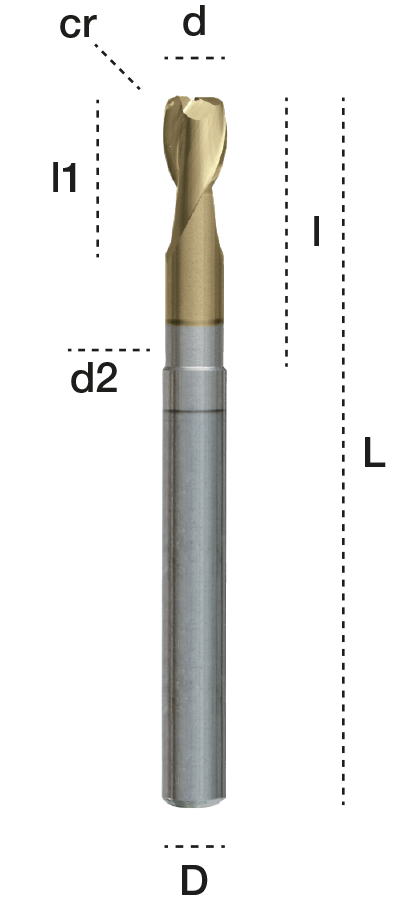

| article number | d e8 |
D h6 |
L | l1 ap |
|
|---|---|---|---|---|---|
| ZrN | |||||
| details | TM H.24-03 R0.3 | 3.00 | 4.00 | 60 | 20 |
|
|
|||||
| details | TM H.24-04 R0.4 | 4.00 | 4.00 | 60 | 20 |
|
|
|||||
| details | TM H.24-05 R0.5 | 5.00 | 5.00 | 60 | 20 |
|
|
|||||
| details | TM H.24-06 R0.3 | 6.00 | 6.00 | 65 | 25 |
|
|
|||||
| details | TM H.24-06 R1.0 | 6.00 | 6.00 | 65 | 25 |
|
|
|||||
| details | TM H.24-08 R0.3 | 8.00 | 8.00 | 70 | 30 |
|
|
|||||
| details | TM H.24-08 R1.0 | 8.00 | 8.00 | 70 | 30 |
|
|
|||||
| details | TM H.24-10 R0.3 | 10.00 | 10.00 | 85 | 40 |
|
|
|||||
| details | TM H.24-10 R1.5 | 10.00 | 10.00 | 85 | 40 |
|
|
|||||
| details | TM H.24-12 R1.5 | 12.00 | 12.00 | 93 | 45 |
|
|
|||||
